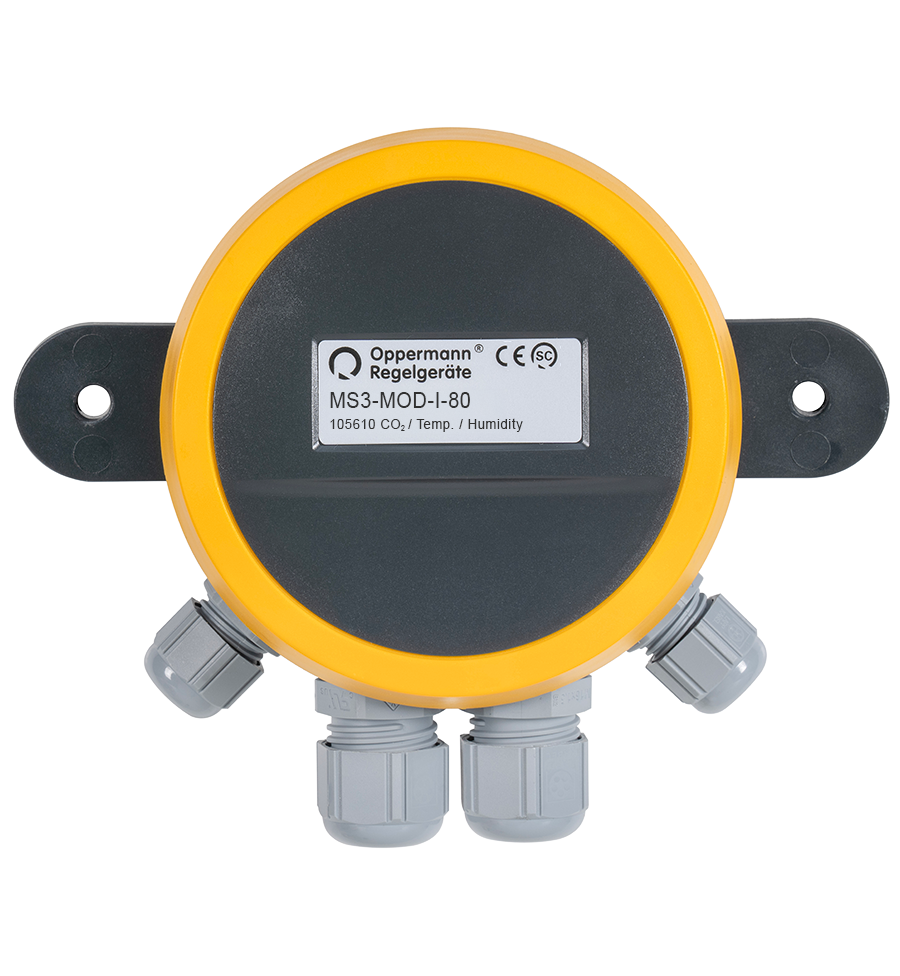

MS3-MOD-I-80
Art. no. 105610
Multisensor CO2, temperature and humidity, Modbus
For installation in air duct.
CO2 measurement range: 0 - 5,000 ppm,
temperature measurement range: -10 - 50 °C,
humidity measurement range: 0 - 95 %rh.
CO2 tolerance: +/- 35 ppm +/-3% of measured value.
temperature tolerance: +/- 1K.
humidity tolerance: +/- 2% at 25°C and 10-90% rh.
Air flows through the air duct sensor tube past
the sensor and back into the air duct.
The measurement principle is based on nondispersive infrared
technology with automatic self-calibration.
maintenance-free. with captive rotary lid.
8 selectable lid positions.
3 configurable analog outputs 1 - 10 V DC.
Modbus RTU 485, baud rate adjustable: 9.6k/19.2k/38.4k/56k.
parity: none, odd, even, address range 1 - 127 adjustable via NFC tool.
power supply:19 - 26 V AC/DC,
current draw: DC 38 mA, AC 61 mA.
housing: base: PBT, color similar to RAL 7016.
lid: PC, color similar to RAL 7016.
Ring: PBT, color similar to RAL 1003.
protection type: IP 20 sensor housing, IP65 OPP-SENS housing.
strain relief: 2 x M16 und 2 x M12.
fast wiring thanks to removable spring terminals.
cable cross-section 0.2-1.5 mm².
terminal resistor via DIP switch.
minimum flow velocity 1m/s.
permissible ambient conditions: - 10°C to 50°C.
0 – 95 %rh (non-condensing).
Data Sheet No. 14140
For installation in air duct.
CO2 measurement range: 0 - 5,000 ppm,
temperature measurement range: -10 - 50 °C,
humidity measurement range: 0 - 95 %rh.
CO2 tolerance: +/- 35 ppm +/-3% of measured value.
temperature tolerance: +/- 1K.
humidity tolerance: +/- 2% at 25°C and 10-90% rh.
Air flows through the air duct sensor tube past
the sensor and back into the air duct.
The measurement principle is based on nondispersive infrared
technology with automatic self-calibration.
maintenance-free. with captive rotary lid.
8 selectable lid positions.
3 configurable analog outputs 1 - 10 V DC.
Modbus RTU 485, baud rate adjustable: 9.6k/19.2k/38.4k/56k.
parity: none, odd, even, address range 1 - 127 adjustable via NFC tool.
power supply:19 - 26 V AC/DC,
current draw: DC 38 mA, AC 61 mA.
housing: base: PBT, color similar to RAL 7016.
lid: PC, color similar to RAL 7016.
Ring: PBT, color similar to RAL 1003.
protection type: IP 20 sensor housing, IP65 OPP-SENS housing.
strain relief: 2 x M16 und 2 x M12.
fast wiring thanks to removable spring terminals.
cable cross-section 0.2-1.5 mm².
terminal resistor via DIP switch.
minimum flow velocity 1m/s.
permissible ambient conditions: - 10°C to 50°C.
0 – 95 %rh (non-condensing).
Data Sheet No. 14140
Unit price
€337.00
Multisensor CO2, temperature and humidity, Modbus
For installation in air duct.
CO2 measurement range: 0 - 5,000 ppm,
temperature measurement range: -10 - 50 °C,
humidity measurement range: 0 - 95 %rh.
CO2 tolerance: +/- 35 ppm +/-3% of measured value.
temperature tolerance: +/- 1K.
humidity tolerance: +/- 2% at 25°C and 10-90% rh.
Air flows through the air duct sensor tube past
the sensor and back into the air duct.
The measurement principle is based on nondispersive infrared
technology with automatic self-calibration.
maintenance-free. with captive rotary lid.
8 selectable lid positions.
3 configurable analog outputs 1 - 10 V DC.
Modbus RTU 485, baud rate adjustable: 9.6k/19.2k/38.4k/56k.
parity: none, odd, even, address range 1 - 127 adjustable via NFC tool.
power supply:19 - 26 V AC/DC,
current draw: DC 38 mA, AC 61 mA.
housing: base: PBT, color similar to RAL 7016.
lid: PC, color similar to RAL 7016.
Ring: PBT, color similar to RAL 1003.
protection type: IP 20 sensor housing, IP65 OPP-SENS housing.
strain relief: 2 x M16 und 2 x M12.
fast wiring thanks to removable spring terminals.
cable cross-section 0.2-1.5 mm².
terminal resistor via DIP switch.
minimum flow velocity 1m/s.
permissible ambient conditions: - 10°C to 50°C.
0 – 95 %rh (non-condensing).
Data Sheet No. 14140
For installation in air duct.
CO2 measurement range: 0 - 5,000 ppm,
temperature measurement range: -10 - 50 °C,
humidity measurement range: 0 - 95 %rh.
CO2 tolerance: +/- 35 ppm +/-3% of measured value.
temperature tolerance: +/- 1K.
humidity tolerance: +/- 2% at 25°C and 10-90% rh.
Air flows through the air duct sensor tube past
the sensor and back into the air duct.
The measurement principle is based on nondispersive infrared
technology with automatic self-calibration.
maintenance-free. with captive rotary lid.
8 selectable lid positions.
3 configurable analog outputs 1 - 10 V DC.
Modbus RTU 485, baud rate adjustable: 9.6k/19.2k/38.4k/56k.
parity: none, odd, even, address range 1 - 127 adjustable via NFC tool.
power supply:19 - 26 V AC/DC,
current draw: DC 38 mA, AC 61 mA.
housing: base: PBT, color similar to RAL 7016.
lid: PC, color similar to RAL 7016.
Ring: PBT, color similar to RAL 1003.
protection type: IP 20 sensor housing, IP65 OPP-SENS housing.
strain relief: 2 x M16 und 2 x M12.
fast wiring thanks to removable spring terminals.
cable cross-section 0.2-1.5 mm².
terminal resistor via DIP switch.
minimum flow velocity 1m/s.
permissible ambient conditions: - 10°C to 50°C.
0 – 95 %rh (non-condensing).
Data Sheet No. 14140
| Measured medium 1: |
Air |
|---|---|
| Measuring range 1: |
0...5000 ppm |
| Measuring range 2: |
-10...+50 °C |
| Measuring range 3: |
0...95 % rh |
| Outputs 1: |
Measurement signal 1...10 V |
| Permissible temperature of medium 1: |
-10…+50 °C |
| Power supply 1: |
24 V AC/DC |
| Protection type: |
IP20 |
| Sensor element 1: |
NDIR sensor |
| Sensor element 2: |
Digital humidity and temperature sensor |
| Sensor element 3: |
Metal oxide sensor |
| Sensor length: |
80 mm |
Datasheet 14140 - OPP-SENS® Multi-Sensor MS/Multi-Controller MC
Flyer OPP-SENS® NFC
Catalogue 2024 (PDF)
Catalogue price list 2024 (Excel)
Catalogue price list 2024 (PDF)
Flip catalogue 2024
EG-Konformität_OPP-SENS_2016-04-20 (only German)
OPP-SENS operating instructions Multisensor/Multiregler
Technical data
| Measured medium 1: |
Air |
|---|---|
| Measuring range 1: |
0...5000 ppm |
| Measuring range 2: |
-10...+50 °C |
| Measuring range 3: |
0...95 % rh |
| Outputs 1: |
Measurement signal 1...10 V |
| Permissible temperature of medium 1: |
-10…+50 °C |
| Power supply 1: |
24 V AC/DC |
| Protection type: |
IP20 |
| Sensor element 1: |
NDIR sensor |
| Sensor element 2: |
Digital humidity and temperature sensor |
| Sensor element 3: |
Metal oxide sensor |
| Sensor length: |
80 mm |
