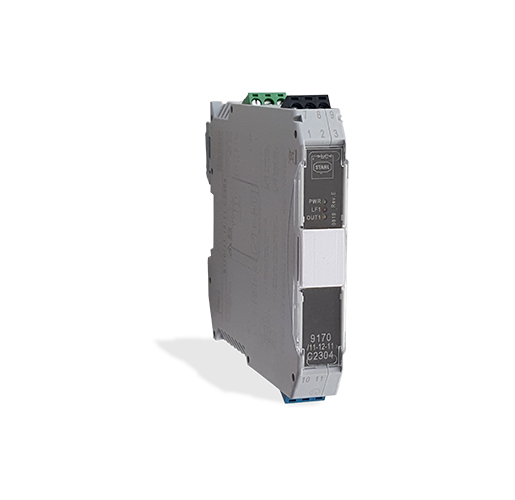

EXL-IR-9170
Art. no. 104704
Universal switching amplifier 24 V DC
For 2-point signals with inherently safe circuit
to connect passive floating sensors. To transfer
signals from the EX area to the safe area. Wire
breakage/short-circuit monitoring and signaling
(can be switched off), direction of action can be
inverted. Installation on standard rails NS35/7.5
or /15. Input: potential-free contact or NAMUR
initiator according to EN 60947-5-6. Output:
potential-free changeover contact Protection
class housing: IP30. Screw terminals 0.2 – 2.5
mm², pluggable. Permissible ambient conditions: -
20 – 65 °C, 0 to 95% rH (non-condensing). ATEX
certificate: DMT 02 ATEX E 195 X.
Data sheet no. 14203
For 2-point signals with inherently safe circuit
to connect passive floating sensors. To transfer
signals from the EX area to the safe area. Wire
breakage/short-circuit monitoring and signaling
(can be switched off), direction of action can be
inverted. Installation on standard rails NS35/7.5
or /15. Input: potential-free contact or NAMUR
initiator according to EN 60947-5-6. Output:
potential-free changeover contact Protection
class housing: IP30. Screw terminals 0.2 – 2.5
mm², pluggable. Permissible ambient conditions: -
20 – 65 °C, 0 to 95% rH (non-condensing). ATEX
certificate: DMT 02 ATEX E 195 X.
Data sheet no. 14203
Unit price
€255.70
Universal switching amplifier 24 V DC
For 2-point signals with inherently safe circuit
to connect passive floating sensors. To transfer
signals from the EX area to the safe area. Wire
breakage/short-circuit monitoring and signaling
(can be switched off), direction of action can be
inverted. Installation on standard rails NS35/7.5
or /15. Input: potential-free contact or NAMUR
initiator according to EN 60947-5-6. Output:
potential-free changeover contact Protection
class housing: IP30. Screw terminals 0.2 – 2.5
mm², pluggable. Permissible ambient conditions: -
20 – 65 °C, 0 to 95% rH (non-condensing). ATEX
certificate: DMT 02 ATEX E 195 X.
Data sheet no. 14203
For 2-point signals with inherently safe circuit
to connect passive floating sensors. To transfer
signals from the EX area to the safe area. Wire
breakage/short-circuit monitoring and signaling
(can be switched off), direction of action can be
inverted. Installation on standard rails NS35/7.5
or /15. Input: potential-free contact or NAMUR
initiator according to EN 60947-5-6. Output:
potential-free changeover contact Protection
class housing: IP30. Screw terminals 0.2 – 2.5
mm², pluggable. Permissible ambient conditions: -
20 – 65 °C, 0 to 95% rH (non-condensing). ATEX
certificate: DMT 02 ATEX E 195 X.
Data sheet no. 14203
| Inputs 1: |
Namur contact |
|---|---|
| Outputs 1: |
Switching output |
| Permits / approvals : |
ATEX |
| Power supply 1: |
24 V DC |
| Protection type: |
IP20 |
Datasheet 14203 - Universal switching amplifier ExL-IR-9170
Catalogue 2024 (PDF)
Catalogue price list 2024 (Excel)
Catalogue price list 2024 (PDF)
Flip catalogue 2024
Technical data
| Inputs 1: |
Namur contact |
|---|---|
| Outputs 1: |
Switching output |
| Permits / approvals : |
ATEX |
| Power supply 1: |
24 V DC |
| Protection type: |
IP20 |
Downloads
Datasheet 14203 - Universal switching amplifier ExL-IR-9170
Catalogue 2024 (PDF)
Catalogue price list 2024 (Excel)
Catalogue price list 2024 (PDF)
Flip catalogue 2024
